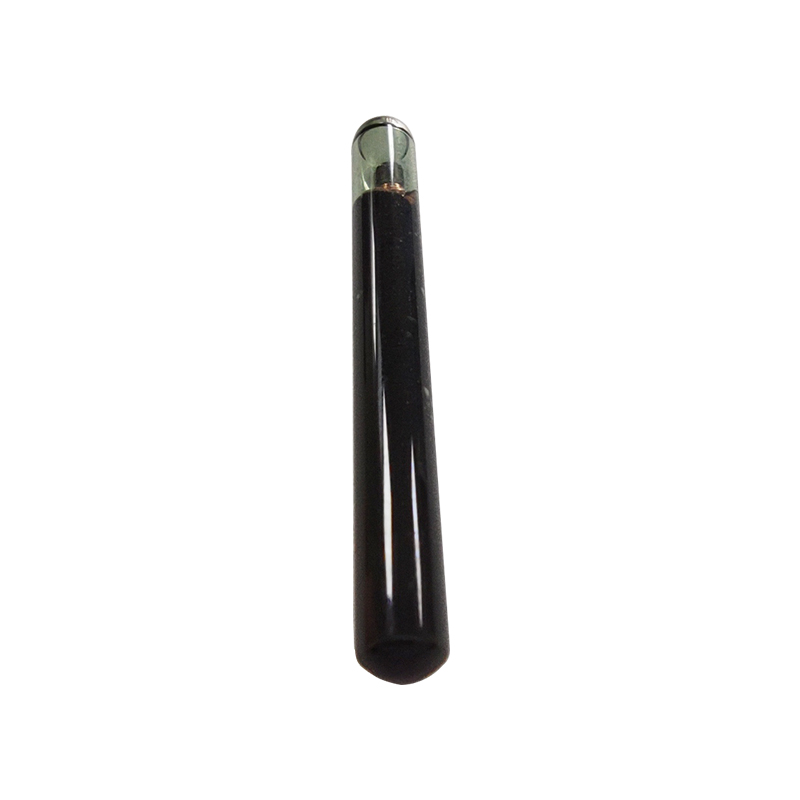

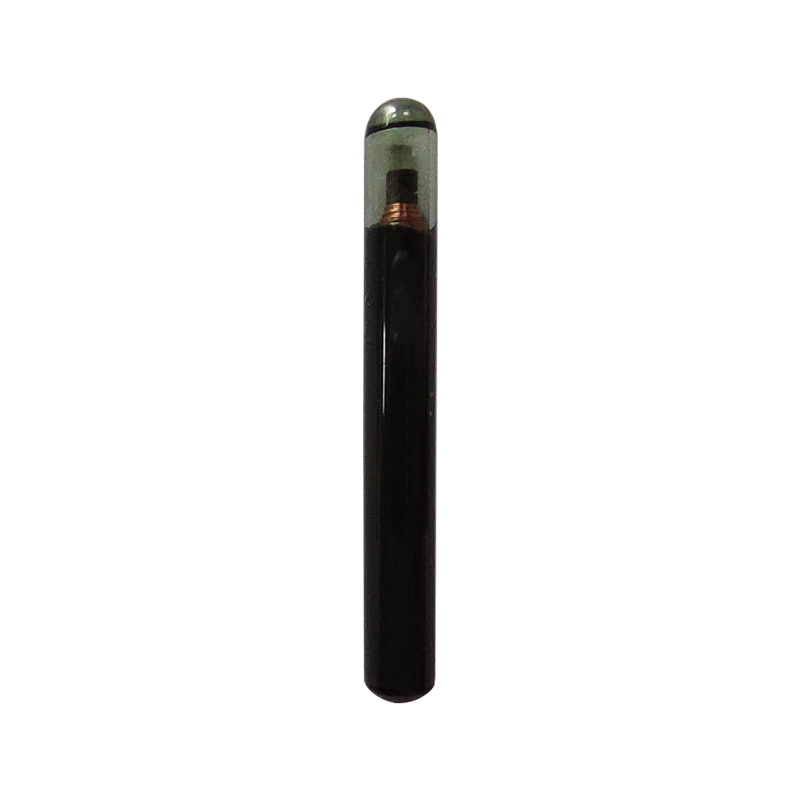

TI 32-mm glass transponders provide superior performance and operate at a resonance frequency of 134.2 kHz. Specific products are compliant to ISO 11784 and ISO 11785 global open standards. TI LF transponders are manufactured with TI's patented tuning pro
TI 32-mm glass transponders provide superior performance and operate at a resonance frequency of 134.2 kHz. Specific products are compliant to ISO 11784 and ISO 11785 global open standards. TI LF transponders are manufactured with TI's patented tuning process to provide consistent read and write performance. Before delivery, the transponders undergo complete functional and parametric testing to provide the high quality that customers have come to expect from TI. The transponder is well suited for use in a broad range of applications including, but not limited to, access control, vehicle identification, container tracking, asset management, and waste management applications.
Device Information
PART NUMBER | PACKAGE (PIN) | BODY SIZE |
RI-TRP-DR2B-40 | TGB (0) | 3.85 mm × 32.2 mm |
● Best-in-Class Performance Through Patented Half- Duplex (HDX) Technology | ● MPT 1360-Bit Type |
● ISO 11784 and ISO 11785 Compliant | |
● Patented Transponder Tuning Provides Stable and High Read and Write Performance | ● Insensitive to Almost All Nonmetallic Materials |
1、Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
MIN | MAX | UNIT | |
TA Operating temperature | -25 | 80 | ℃ |
Write (program) temperature | 0 | 70 | ℃ |
TSTG Storage temperature | -40 | 125（1） | ℃ |
（1）For a total of 1000 hours
2、ESD Ratings
Device is fully encapsulated and protected. No ESD classification applies.
3、Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN | MAX | UNIT | |
Tr Recommended operating temperature | 0 | 70 | ℃ |
4、Electrical Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER | RI-TRP-DR2B | UNIT |
Functionality | MPT | |
Memory | 1360 | bits |
17 R/W | pages | |
Operating Frequency | 134.2 | kHz |
Modulation | FSK (frequency shift keying), 134.2 kHz and 123.2 kHz | |
Transmission Principle | HDX (half duplex) | |
Power Source | Powered from the reader signal (batteryless) | |
Typical Read Range | ≤100 (1) | cm |
Typical Programming Range | 30% of specified reading range | |
Typical Read Time | 86 | ms |
Typical Programming Time | 293 | ms |
Typical Programming Cycles | 100000 |
(1) Depends on RF regulation in country of use, the reader antenna configuration used, and the environmental conditions.
5、Physical Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER | RI-TRP-DR2B | UNIT |
Case Material | Glass | |
Protection Class | Hermetically sealed | |
EMC | Programmed code is not affected by normal electromagnetic interference or x-rays | |
Signal Penetration | Transponder can be read through almost all nonmetallic material | |
Dimensions | ?3.85 ±0.05 × 32.2 ±0.6 | mm |
Weight | 0.85 | g |
● Access Control | ● Asset Management |
● Vehicle Identification | ● Waste Management |
● Container Tracking |
RFID TI玻璃管標簽RI-TRP-DR2B-40文檔資料.pdf
